Corsair FRAME 5000D Wood RS Review

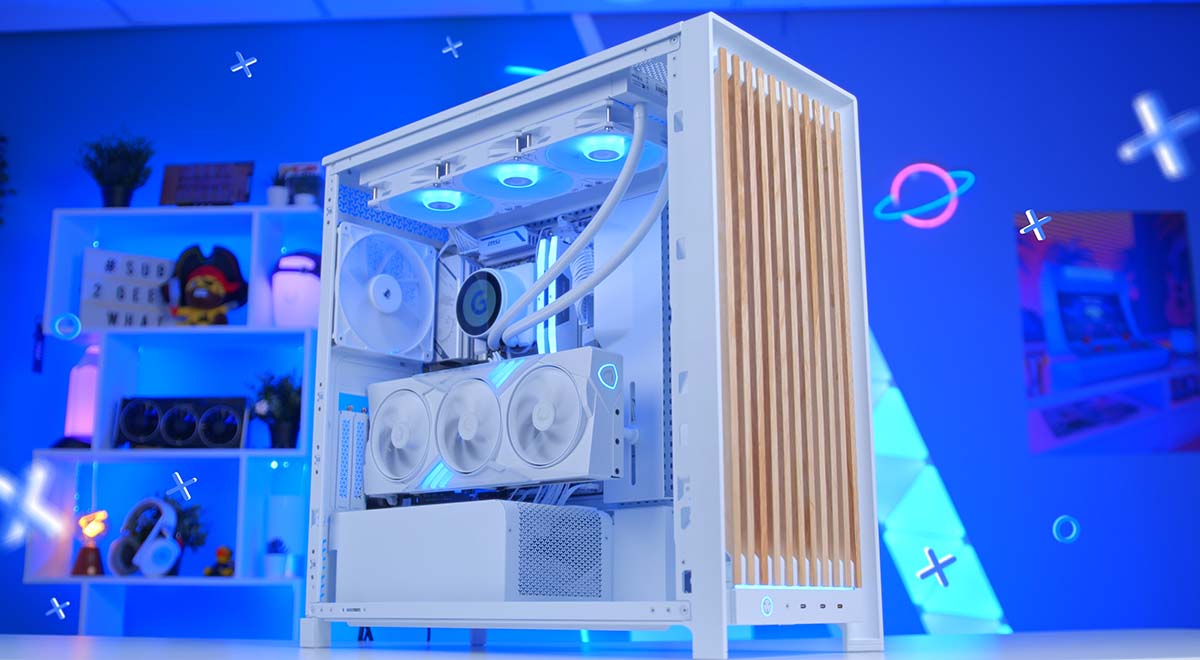

We already put the Corsair FRAME 5000D through its paces and came away impressed, so what happens when Corsair swaps that airflow front panel for a slab of real wood? Say hello to the FRAME 5000D Wood RS, specifically the White and Oak finish.

Underneath the natural front panel it is the same modular mid-tower we already rated, but the wood treatment gives it a warmer, more premium look that stands out in a sea of mesh and glass. Here is how it shapes up.

Specifications

Design

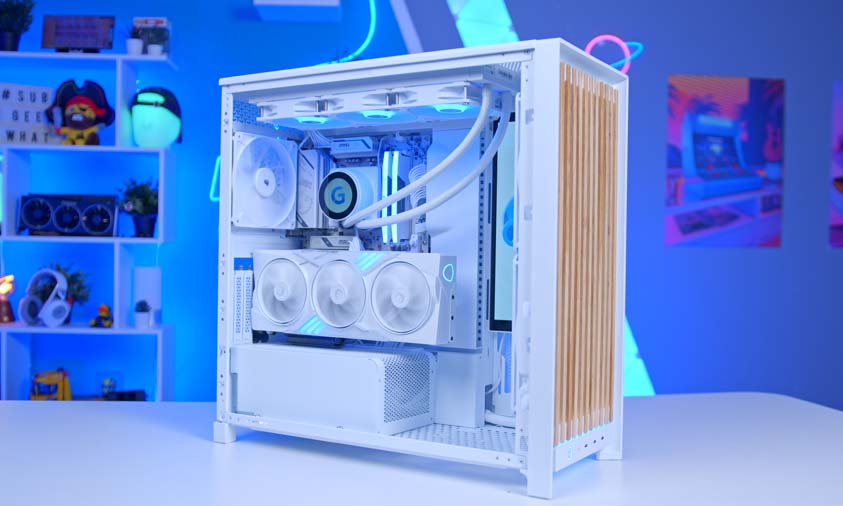

The headline here is obvious the moment you look at it: a front panel cut from a single piece of FSC-certified solid wood. On this White and Oak model that means a pale oak fascia set against a clean white chassis, and the result is on the money. For those concerned about airflow with the updated front panel, Corsair do say that the wood is shaped to keep air moving through the front, as opposed to just being there for the aesthetic. Everything else carries over from the standard FRAME 5000D we reviewed.

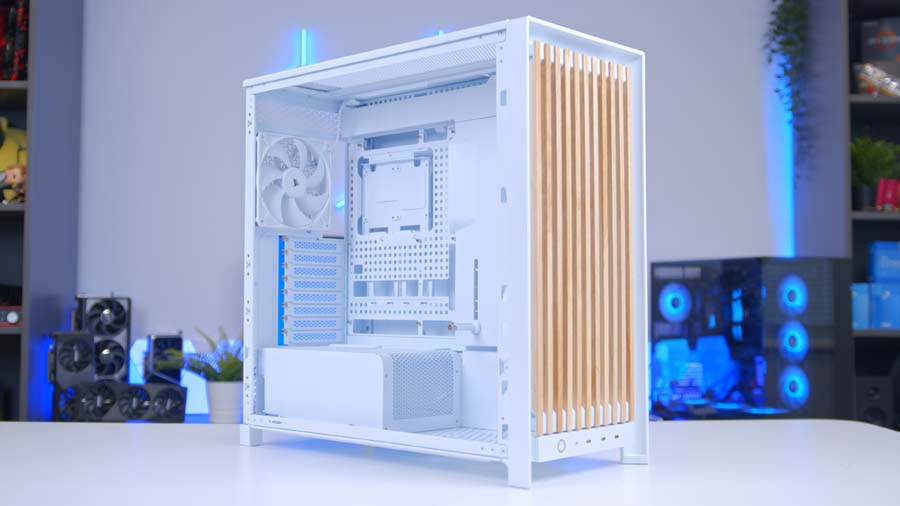

You get a full tempered glass left side panel, a steel right panel hiding the cable chamber, and the same boxy silhouette. It’s the same tasteful look that would sit just as happily in a modern office as it would a gaming setup.

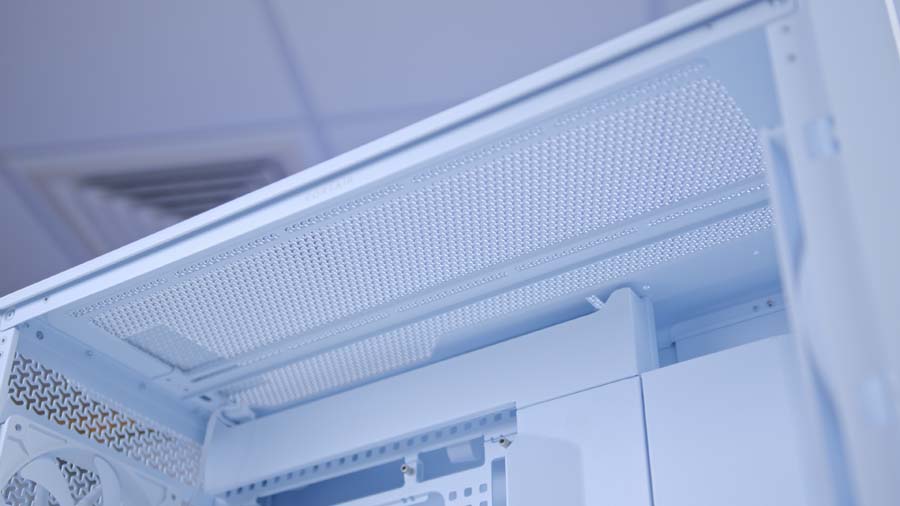

Corsair’s modular FRAME system is the real story under the hood. The InfiniRail fan mounting system lets you slide front and roof fans into position rather than lining them up with fixed holes, which makes fitting big 200mm or 140mm fans far less fiddly. There is masses of cooling flexibility on offer too, with room for up to 11 120mm or 10 140mm fans and three separate 420mm radiator mounting locations across the front, side and top.

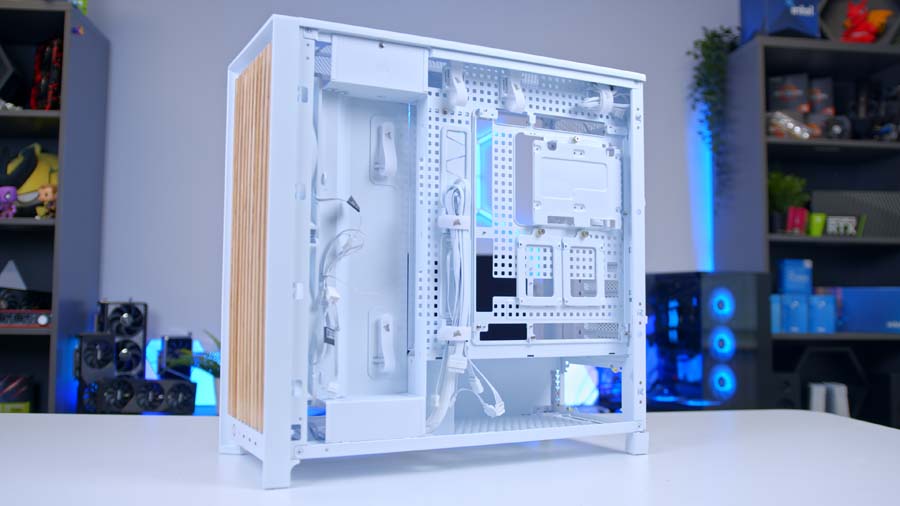

Cable management gets a boost from RapidRoute 2.0, a pegboard-style motherboard tray with detachable, rotatable tie-down points so you can route wires exactly how you like.

Corsair has kept the niceties from the wider FRAME range as well, including a GPU anti-sag stabilisation arm, QuikMount motherboard screws that grip the screwdriver so they stop dropping mid-build, and full support for reverse-connector motherboards from ASUS, MSI and Gigabyte for a cable-free front.

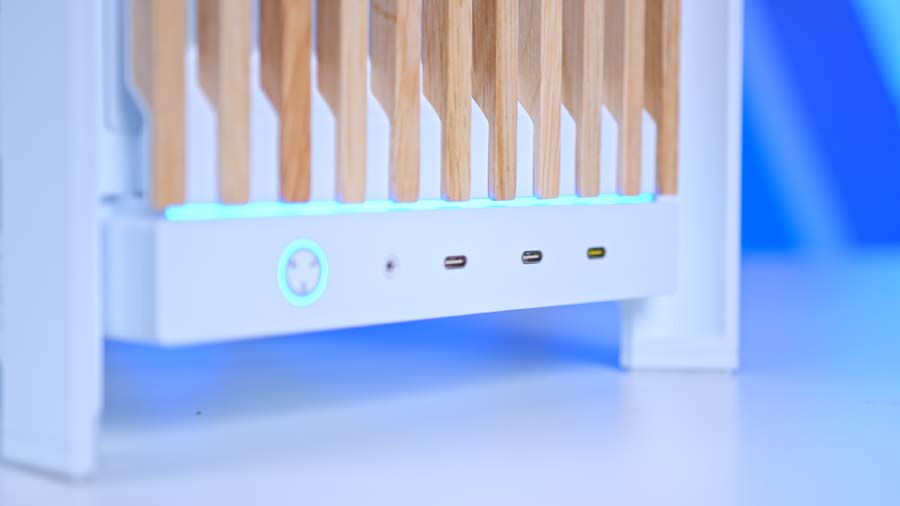

One thing worth flagging is the front IO. You get a 20Gbps USB 3.2 Gen 2×2 Type-C port plus two Gen 1 Type-C ports and a combo audio jack, so it leans heavily on Type-C. Anyone still running older Type-A peripherals will want an adapter or a hub to hand.

Building Experience

Because the Wood RS shares its chassis with the standard FRAME 5000D, building in it is the same straightforward experience we had first time round. The tool-less panelling makes getting into the internals easy, and the highly modular design means you can strip the chassis back to its bare bones, for installation ease.

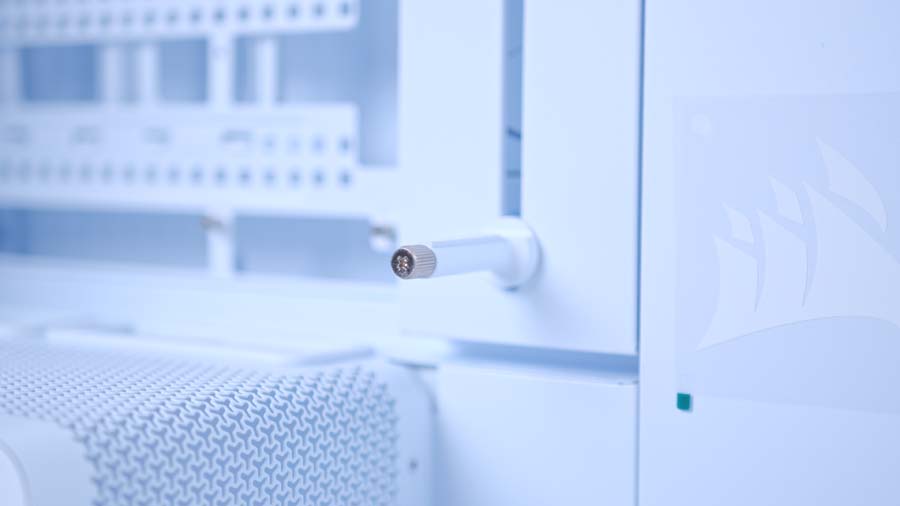

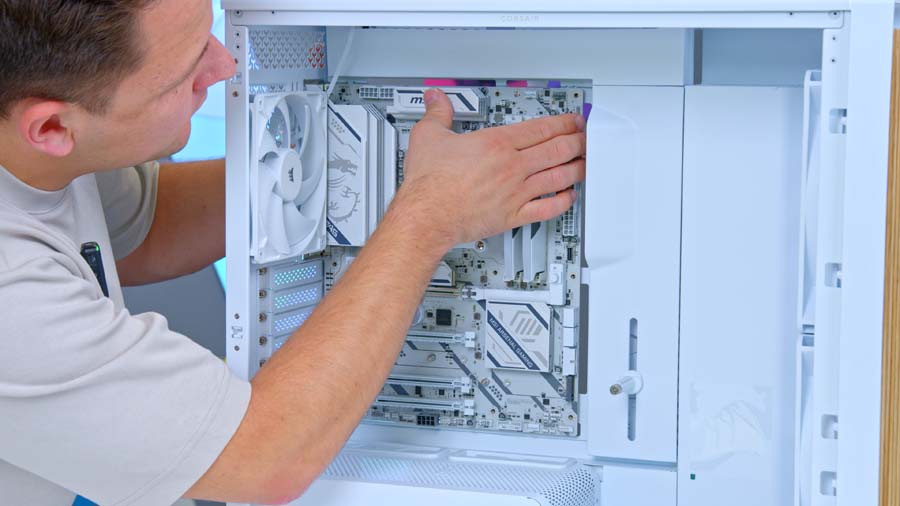

Assembly is quick and painless with a huge amount of internal space across the board, so fitting larger components like a liquid cooling radiator and a long graphics card is nice and easy. The motherboard rests on the centre standoff, so lining it up and screwing it in is hassle-free.

The InfiniRail mounting system really earns its keep when fitting an AIO. Loosen the screws on either side and the rails slide to take different fan sizes, so you can shift them to suit a chunky front radiator without fighting fixed mounting holes.

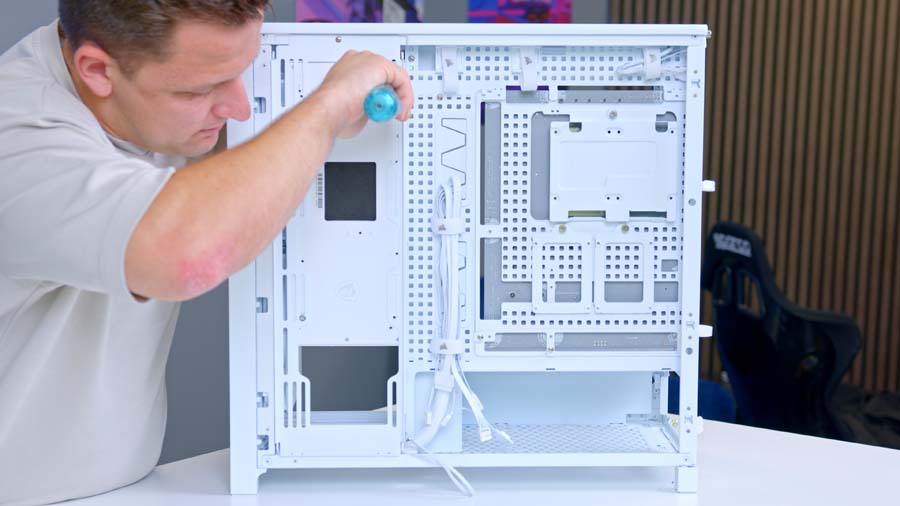

Wiring is where RapidRoute comes in. Its pegboard-style mounting lets you move the cable straps around and build your own channels for wires, which makes a clean finish far easier to achieve. A quick word of warning from past FRAME builds: if you are running a cooler with proprietary cabling like iCUE LINK alongside 3-pin ARGB, the wiring is naturally busier. Stick to the pre-installed fans and a simpler cooler and cable management gets much simpler.

Features We Like

Solid Wood Front Panel

The front panel is the obvious draw, cut from a single piece of FSC-certified solid wood. On this White and Oak model it gives the whole build a warm, premium feel that mesh and glass simply cannot match, and Corsair has shaped the panel so air can still flow through the front rather than choking the intake. It’s a proper design statement that helps the Wood RS stand out on a shelf full of lookalikes.

FRAME Modular Building

The FRAME system is built around making your life easier. The InfiniRail rails slide to take different fan and radiator sizes instead of forcing you onto fixed holes, and RapidRoute 2.0 adds a pegboard tray with movable, rotatable tie-down points so you can route cables exactly how you want. Together with the tool-less panels, it makes for a clean, fuss-free build whether you’re a first-timer or a seasoned hand.

Features We Don’t Like

No Exhaust Fan

The Wood RS arrives with its 200mm fans up front for intake, but there is nothing pre-installed in the rear exhaust mount. For the cleanest front-to-back airflow path you will want to add a 120mm or 140mm fan back there yourself, which is a small extra outlay and a slightly surprising omission at this price. The mount is ready and waiting, so it is at least an easy job, just one to factor in.

Premium Price Tag

That solid wood front does not come cheap. The Wood RS sits above the standard mesh-fronted FRAME 5000D and most rival mid-towers on price, so you are paying a clear premium for the natural finish rather than for any extra kit in the box. If the wood is the reason you’re here, it’s money well spent, but anyone chasing pure value will find plenty of airflow-focused cases that cover the fundamentals for less.

‹ ›

‹

›

× ‹

›
