MSI MPG Ai1600TS PCIE5 Power Supply Review

The MSI MPG Ai1600TS is one of the strongest PSUs available to buy in todays market and I’m not just talking about the max wattage. The Ai1600TS is seriously impressive and has a specs and feature list that stands to dethrone even MSI’s own flagship model, the Ai1600T. The release of the Ai1600TS, feels very much like uncharted territory. How often is it that we get a product release from a brand, that not only undercuts their own flagship model but does so, so aggressively, whilst throwing in some additional bells and whistles in while it’s at it? It’s simply unheard of, slightly barmy and… genius?

The MEG Ai1600T was, and is, already a ludicrously good power supply, so to have a new release from their middle tier range (MAG, MPG, MEG) looking to ascend to the top, I daren’t think about what MSI are planning for the next MEG iteration. One things for sure, if the MSI MPG Ai1600TS is a sign of things to come, its a scary time to be an MSI competitor.

Specification

So, the specs. Strap in, because there is A LOT!

The headline stats are this, the Ai1600TS is a fully modular ATX 3.1/PCIe 5.1 compliant PSU with 80 Plus and PPLP Titanium ratings and a Cybenetics Platinum rating. Unit dimensions are 150x190x86 (DxWxH), with embossed jacket cabling for easier routing and increased flexibility. The PCIe 5.1 cable(s) feature MSI’s signature dual colour connector, with vibrant yellow colouring helping to ensure secure connection.

Where the the Ai1600TS takes it to the next level however is with the rest of the specs. The standout feature of the Ai1600TS is GPU Safeguard+. What this tech does, is monitor the real-time current present on both 12V-2×6 connectors and provides real-time alerts should the power surge to, what are considered, unsafe levels. The idea behind this technology, in tandem with the dual colour connectors, is to prevent issues with connections. Be that through physical loose connections or connection current imbalances.

Often, issues such as current surging or imbalances remain hidden until its too late and usually show themselves in the form of melted connectors or ‘dead’ GPUs. GPU Safeguarding+ detects these issues ahead of time and puts the wheels in motion to prevent system damage. Starting with an audible beeping via the PSU itself, to on screen popups through MSI center, to forced Power Supply intervention, namely forced black screen after the 3 minute timeout period has elapsed.

Fan Safeguard is also present on the Ai1600TS, detecting PSU fan failure immediately and again alerting the user to the issue through an audible buzzer. Elsewhere the Ai1600TS features dual 12V-2×6 support, is built using server grade materials for up to 10% less heat waste and is the owner of a Cybernetics A+ rating for quiet operation.

Contributing to the Cybenetics A+ audible rating are the Zero Fan mode, bringing the PSU fan to a complete halt under low load, FDB fan bearing design and overall, what MSI are calling, Night sound level design.

Design

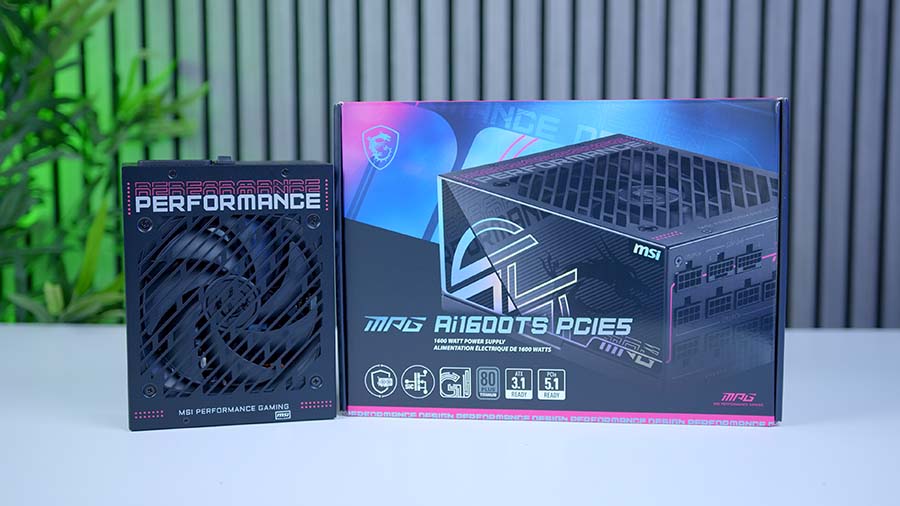

The MSI MPG Ai1600TS wears the unmistakable MPG branding that we’ve come to know and love over the years. Striking the perfect balance between flashy aesthetics and chart topping performance, the Ai1600TS prioritises both function and form. The signature MPG branding is ever present alongside the wider MSI dragon liveries. The side is home to a rather striking reflective, gradient logo with the top and connector side featuring the red and white ‘performance’ text tying the Ai1600TS into its MPG roots.

The Ai1600TS positions itself as a true best of both worlds option, suitable for users who value sustainable enthusiast level performance and premium design aesthetics. Build quality is exceptional and the introduction of server grade materials in the manufacturing process only further benefit the Ai1600TS’ performance. Sizing is on the larger side but remains compatible with the large majority of modern case designs but as always with compatibility related queries is worth double checking.

What’s Included?

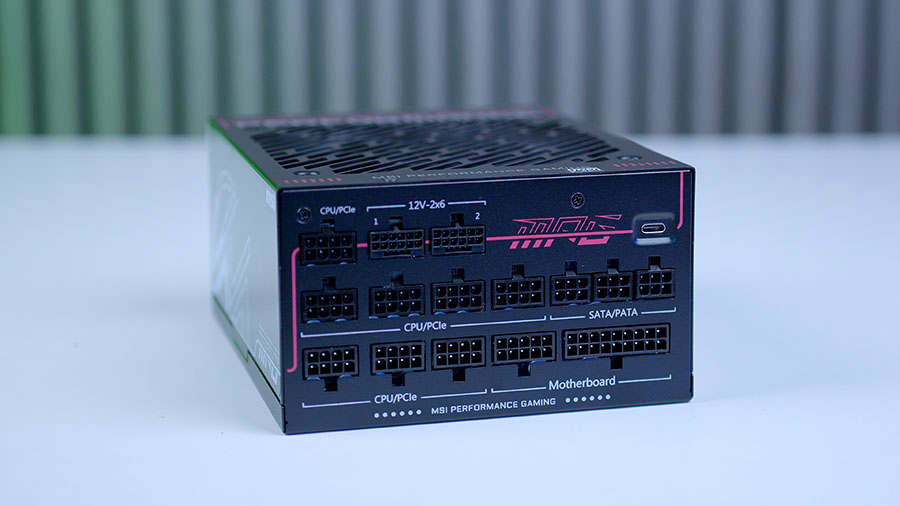

With the Ai1600TS being a fully modular unit, PSU cables aren’t pre-installed, offering superior customizability and flexibility versus non-modular alternatives. This allows you to install only the cables needed for your specific build, eliminating cable clutter and simplifying management. The Ai1600TS box included cables are listed below:

The Ai1600TS is designed to offer reliable and consistent top-end performance when dealing with even the highest-end builds. With support for dual PCIe 5.1 12V-2×6 connectors – each cable capable of delivering up to 600W (NVIDIA GPUs only), plus a total of seven PCIe 6+2-pin connections, the Ai1600TS can support multiple flagship GPUs simultaneously or provide plenty of headroom for extreme single-GPU configurations.

CPU support exceeds requirements for even the most power-hungry overclockable processors, while peripheral support is comprehensive with an extensive array of both SATA and Molex connectors.

Compatibility

The MPG Ai1600TS excels in its compatibility across the entire spectrum of modern GPUs, from mainstream to extreme flagship cards. With 1600W of total capacity, this PSU provides headroom in abundance, even when dealing with GPUs like the RTX 5090. While 1600W will be overkill for most mainstream builds, enthusiasts pursuing 4K gaming with flagship GPUs, multi-GPU workstation setups, or extreme overclocking can be dead set that the Ai1600TS has substantial reserves to spare.

For those planning multi-year, long lasting, future proof builds, the MPG Ai1600TS is perhaps the ultimate answer to future-proofing. In a market where GPU power requirements are at an all-time high, the total wattage, in partnership with the titanium efficiency ratings ensures that even as component efficiency degrades over time, the Ai1600TS will maintain output levels well above typical operating thresholds.

GeekaWhat PSU Verdict

MSI MPG Ai1600TS PCIE5 Review Verdict

So. The MSI MPG Ai1600TS PCIE5 stands as a flagship-tier solution, without actually being the flagship model. In many ways the MPG Ai1600TS has legitimate cause to usurp the MEG Ai1600T, and lays a compelling argument to do so. Be it the additional features, most notably GPU safeguarding+, the stronger price point or the good old, price to performance offering. The Ai1600TS, at least in my mind, currently acts as the strongest enthusiast offering from MSI, even if it is an honorary member.

Overall Score

4.6 / 5

Flagship performance for extreme builds.

Awarded the GeekaWhat Performance Award

Features

5.0 / 5

Design

4.2 / 5

Performance

5.0 / 5

Value for Money

4.2 / 5

Pros

• Revolutionary Safeguard+ tech
• Dual 12V-2×6 support
• 80 Plus Titanium efficiency

Cons

• Overkill for mainstream builds
• 190mm length requires spacious case
• Heavy unit weight

Tested by Harry Coleman with high-end GPU configurations, validated for efficiency and safeguarding features.
