The AMD Radeon RX 9070 XT has hit the shelves and has, so far, been welcomed with open arms. Despite being a $599 graphics card, the RX 9070 XT can beat the RTX 5070 Ti, offering similar and sometimes better performance at 1440p and 4K. This is a powerful GPU worth picking up if you’re looking to secure a solid mid-range graphics card, but which PC cases should you pair up with this potent option? We’ve set out to answer this question by testing a range of PC cases to determine the best chassis to buy for the RX 9070 XT.
This buyer’s guide series examines the best CPUs, power supplies, and PC cases for the RX 9070 XT. In this particular buyer’s guide roundup, we’ve built a PC in a range of cases with the RX 9070 XT to determine which chassis pairs well. We’ll delve into each PC case’s specs, design, features, and pricing, providing an overview of each option.
Our Top Pick: Montech King 65 Pro
The best case for the RX 9070 XT is the Montech King 65 Pro. Montech have absolutely stormed the PC case scene, and the King 65 Pro is one of our go-to recommendations for those building a new system. It offers dual tempered glass panels, three pre-installed fans, plenty of RGB to spice up the look of your build. It’s incredibly easy to build with, and offers a solid cable management design.
Best PC Cases for the RX 9070 XT

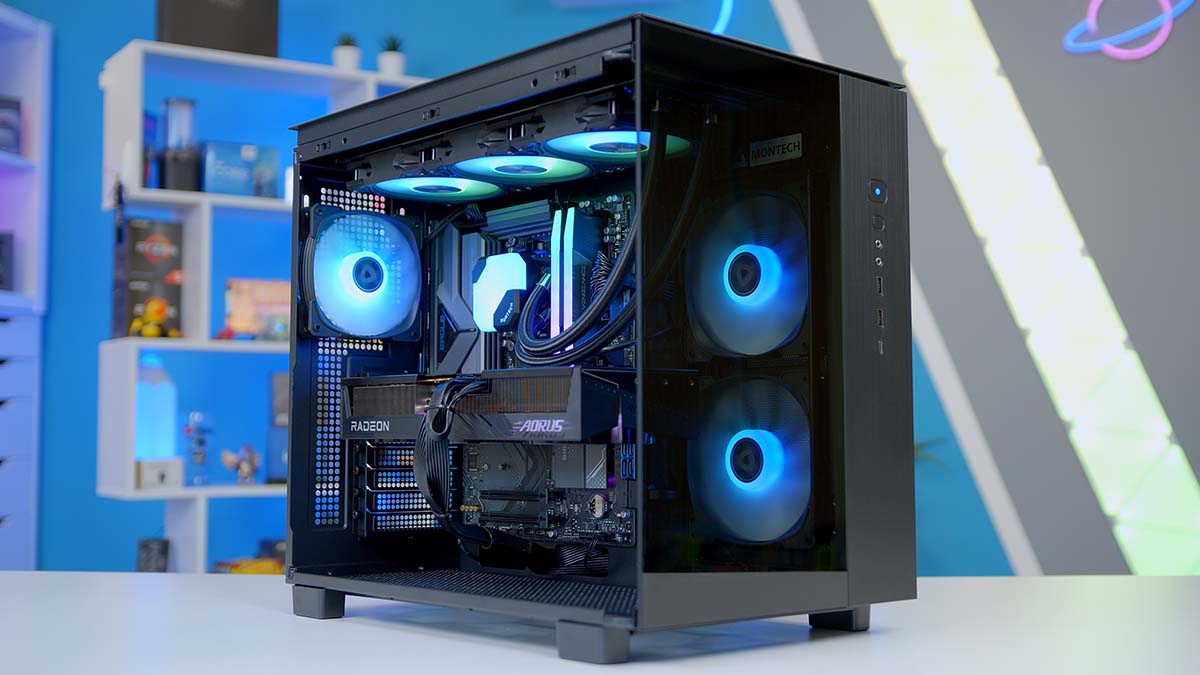

1. Montech King 65 Pro
The Montech King 65 Pro is our top pick for this buyer’s guide roundup to pair with the AMD Radeon RX 9070 XT. It is a dual-chamber, fish-tank-style case with tempered glass panels on the front and side. This chassis is the smaller sibling of the King 95 Pro, an incredibly popular case we’ve looked at before. The Montech King 65 Pro offers builders a slightly smaller footprint versus the King 95 Pro but with a similar set of features.
In the main chamber of the case, you’ll find three pre-installed fans, two in reverse on the side and one at the rear, providing ample airflow to intake and exhaust. All three fans offer addressable RGB, which means they can be synced up with the strip at the front of the case and can be customised using the case button or SignalRGB if you prefer to tinker. The motherboard tray offers support for ATX motherboards and has up to 420mm of clearance for graphics cards, so you’ve got plenty of room to install an RX 9070 XT with no issues.
| Key Specs | Montech King 65 Pro |
|---|---|
| Form Factor | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Case Dimensions (L x W x H) | 475mm x 300mm x 442mm |
| Front IO | 2 x USB 3.0 Type-A 1 x USB Type-C 1 x 3.5mm Microphone Jack 1 x 3.5mm Headphone Jack |
| PCI-E Slots | 7 |
| Max Clearance | 175mm Cooler Height 420mm GPU Length 185mm PSU Length |
| Drive Support | Up to 5 x 2.5 inch Up to 2 x 3.5 inch |
| Fan Support | Top: 3 x 120mm Side: 2 x 120mm Bottom: 3 x 120mm Rear: 1 x 120mm |
| Radiator Support | Top: Up to 360mm Side: Up to 280mm Rear: Up to 120mm |
| Pre-installed Fans | 3 |
The King 65 Pro has space for up to 6 more fans on the top and bottom panels or a 360mm liquid cooler on the top panel. Installing components and cable management in this chassis is incredibly straightforward. The top panel is removable, making installing and adjusting a radiator much easier while accessing cables like CPU power and fan headers. At the rear, there’s a tremendous amount of space in the secondary chamber to manage cables, with included Velcro ties or anchor points to secure everything.
Regarding caveats, the biggest one to consider with the Montech King 65 Pro is its size. Dual-chamber cases are not small, and because of the glass and the sturdy metal frame, the King 65 Pro is both sizeable and weighty. If you need to move around a lot or you’re looking for a case that can easily fit under a desk, the King 65 Pro may not be the case for you.
Pros
- Ample RGB lighting
- Plenty of rear chamber space
- Removable top radiator space
Cons
- Weight and size
- Limited radiator space
2. Phanteks Eclipse G400A
The Phanteks Eclipse G400A is a gorgeous, heavily ventilated ATX case that offers a more traditional form factor and shape. Instead of the typical dual-chamber cases that we’ve seen hit the shelves over the past couple of years, the Eclipse G400A offers a much more common mid-tower look. It has four pre-installed fans, three at the front and one at the back, in a simple push/pull configuration. The front panel features a metal mesh backed by a dust filter, minimising blockages. All fans are RGB and can be synced with the horizontal light strip below the tempered glass side panel.
Regarding the internal space, the Eclipse G400A can house up to E-ATX motherboards, so there’s plenty of room for a larger build. There’s 415mm of clearance for graphics cards, only 5mm less than the King 65 Pro. You’ve also got room for a CPU air cooler up to 184mm, so an air tower cooler like the Hyper 622 Halo would be great for a build in this chassis.
| Key Specs | Phanteks Eclipse G400A |
|---|---|
| Form Factor | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Case Dimensions (L x W x H) | 495mm x 230mm x 522mm |
| Front IO | 1 x USB 3.0 Type-A 1 x USB 3.2 Gen2 Type-C 1 x 3.5mm Combo Jack |
| PCI-E Slots | 7 (+ 3 vertical) |
| Max Clearance | 184mm Cooler Height 415mm GPU Length 270mm PSU Length |
| Drive Support | Up to 2 x 2.5 inch Up to 2 x 3.5 inch |
| Fan Support | Top: 3 x 120mm Front: 3 x 140mm Bottom: 3 x 120mm Rear: 1 x 140mm |
| Radiator Support | Top: Up to 360mm Rear: Up to 120mm |
| Pre-installed Fans | 4 |
Regarding fan space, the Eclipse G400A is slightly more restrictive than the King 65 Pro. However, there’s a decent amount of room to install a few extra fans. The top and bottom panels can house three 140mm fans and three 120mm fans, respectively. The top panel accommodates a 360mm radiator for liquid cooling, and this is the only place to install a liquid cooler.
The Eclipse G400A’s biggest weakness is its confusing RGB wiring. Phanteks uses a proprietary system known as D-RGB, which works with its coolers and fans. Because four fans are already pre-installed in this case, wiring up for the first time can be pretty confusing. We don’t recommend this chassis if you don’t have a strong bearing on fan and RGB wiring.
Pros
- Four pre-installed fans
- Heavily ventilated design
- Ample RGB lighting
Cons
- Confusing RGB wiring
- Limited cable management space
3. Corsair FRAME 4000D
Corsair’s FRAME 4000D chassis was recommended during the launch of the RTX 5070 Ti, so it’s no surprise to see it appear in another PC case buyer’s guide. The FRAME 4000D builds upon the success of the original 4000D case by modernising a number of its features while retaining the qualities and design elements that we loved about its predecessor.
The FRAME 4000D accommodates modern graphics cards, with up to 430mm of clearance for larger RX 9070 XT GPUs. There’s also a vast amount of additional space for extra fans and coolers, with the FRAME 4000D offering up to twelve spots for fans or three panels with space for 360mm radiators. Additionally, the FRAME 4000D has a rotational graphics card bracket, allowing you to spice up the look of your build with a vertically mounted GPU.
| Key Specs | Corsair Frame 4000D RS ARGB |
|---|---|
| Form Factor | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX |
| Case Dimensions (L x W x H) | 490mm x 239mm x 486mm |
| Front IO | 2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen2 Type-C 1 x 3.5mm Combo Jack |
| PCI-E Slots | 7 (3 Vertical) |
| Max Clearance | 170mm Cooler Height 430mm GPU Length 220mm PSU Length |
| Drive Support | Up to 2 x 2.5 inch Up to 2 x 3.5 inch |
| Fan Support | Top: 3 x 120mm Front: 3 x 120mm Side: 3 x 120mm Bottom: 2 x 120mm Rear: 1 x 140mm |
| Radiator Support | Top: Up to 360mm Front: Up to 360mm Side: Up to 360mm Rear: Up to 140mm |
| Pre-installed Fans | 3 |
In terms of features, Corsair has employed a mounting system they refer to as InfiniRail. This system is relatively unique and offers space for up to 200mm simply by adjusting the width of the rails. At the front of the case, you’ll find an integrated GPU support bracket, allowing you to alleviate any sag with larger cards. The FRAME 4000D is also highly modular, providing easy access to the case’s internals while offering a way to spice up your build with some alternative front panel designs.
The main weakness of the FRAME 4000D is its overall aesthetic, which is fairly simplistic. Compared to the Eclipse G400A and King 65 Pro, which both stand out a bit more due to their RGB lighting or interesting form factor, the FRAME 4000D just looks a bit plain. This isn’t to say the aesthetic won’t appeal to some, but there are more interesting-looking cases on the market if you want to build an RX 9070 XT with plenty of pizzazz.
Pros
- Accommodates modern components
- Unique fan/cooler mounting system
- Heavily ventilated design
Cons
- Simplistic design
- Only has 3 pre-installed fans
Frequently Asked Questions
How Big is the RX 9070 XT?
Unfortunately, with no reference model, the RX 9700 XT AIB cards can range from 300mm to 370mm. For example, the Sapphire Pulse RX 9070 XT is 320mm long.
Should I Buy Additional Fans?
All of the cases in this buyer’s guide come with fans. However, to ensure good airflow, we recommend buying an extra rear fan if your chassis doesn’t have one.
Is Cable Management Important?
It is if you want your build to look tidy. However, ensuring your wires don’t block airflow is the most critical factor.
