Best Motherboards for Intel 12th Gen & Ryzen 5000 – Motherboard Compatibility Guide

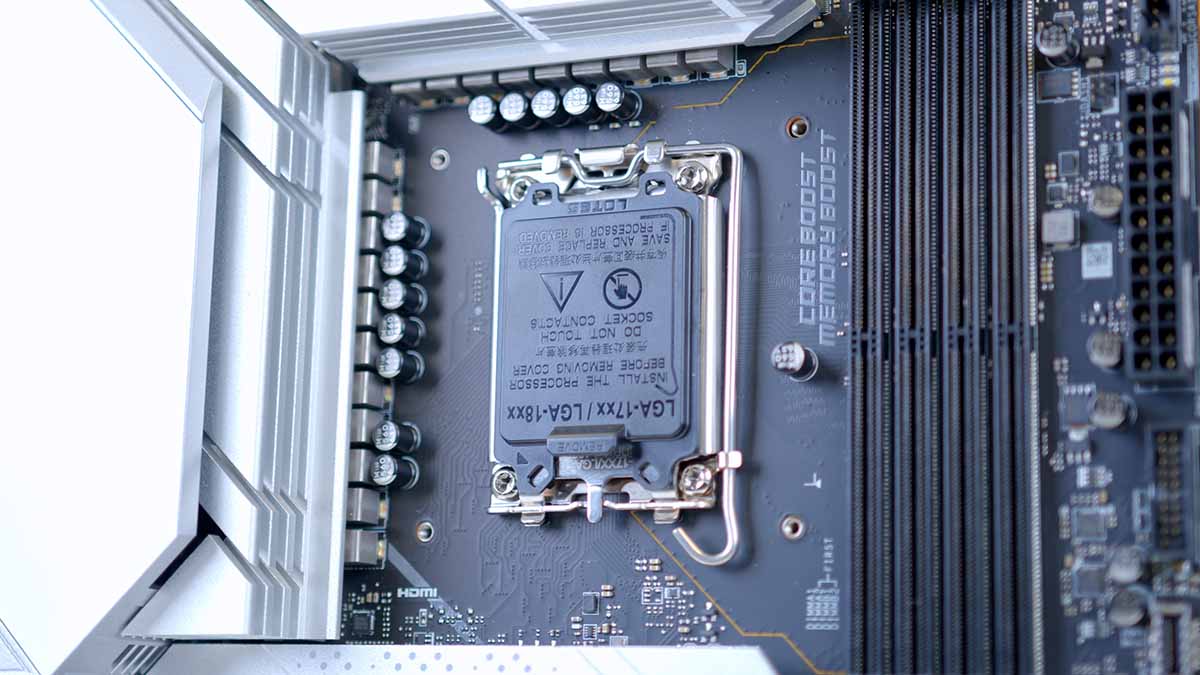

Z690 Force WiFi Chipset - 1200

Introduction

The motherboard market has a multitude of options that can make the process of picking components confusing. So to help you out, we’ve put together a compatibility guide, showing which boards are open to choose for your next gaming PC build. Below we’ll also touch on some important features to look out for, compatible motherboards for the most popular CPUs in 2022, and our favourite boards from different chipsets.

Features to Look For

Both latest releases from Intel and AMD CPUs tend to be up to date on the feature front – offering plenty of next-gen tech for gamers and enthusiasts. With Intel’s newest 12th generation line-up, we were given access to DDR5 memory support, super fast PCI-E Gen 4 SSDs and PCI-E 5.0 x16 slots for GPUs. AMD also offers similar features with the exception of DDR5 compatibility. We are expecting AMDs next-gen release to boast support for the new memory standard.

Other great features to look out for include: Integrated WiFi, the range of front and rear IO support and extra features like an integrated IO shield and tool-less component installation. Each motherboard will differ based on both the chipset and the manufacturer, so be sure to double check what included features you’re interested in before you buy.

This Z690 AORUS Master has an included power button and Q-Code LED to make diagnosing your build easier.
MSI MAG B660M Mortar - Rear IO
On this MSI B660 MAG Mortar board, you can see a wide range of rear IO, but this may differ compared to a Z690 motherboard.
Z690 Motherboard PCIe Slot
The amount of PCI-E x16 lanes (and slots) will vary between each manufacturer and chipset. So be aware of this before you buy.

Motherboard Compatibility Table

Below we’ve provided a compatibility table of all of the currently available chipsets for the most recent Intel and AMD CPUs. We’ve also included the chipsets that we would pair with the CPU ranges available, based on the best mix of features, given the motherboards price point and features, relative to the price point and power of the CPU.

CPUsCompatible MotherboardsRecommended Chipsets
Intel 12th Gen Core i9Z690, B660, H670, H610Z690
Intel 12th Gen Core i7Z690, B660, H670, H610Z690, H670
Intel 12th Gen Core i5Z690, B660, H670, H610H670, B660
Intel 12th Gen Core i3Z690, B660, H670, H610B660, H670, H610
AMD Ryzen 9 5000 seriesX570, X470, B550, B450, A520X570, X470
AMD Ryzen 7 5000 seriesX570, X470, B550, B450, A520X570, X470
AMD Ryzen 5 5000 seriesX570, X470, B550, B450, A520B550, B450
Intel 11th Gen Core i9Z590, B560, H570, H510Z590
Intel 11th Gen Core i7Z590, B560, H570, H510Z590, H570
Intel 11th Gen Core i5Z590, B560, H570, H510B560, H570
Intel 11th Gen Core i3Z590, B560, H570, H510B560, H510
AMD Ryzen 9 3000 seriesX570, X470, B550, B450, A520X570, X470
AMD Ryzen 7 3000 seriesX570, X470, B550, B450, A520X570, X470
AMD Ryzen 5 3000 seriesX570, X470, B550, B450, A520B550, B450
AMD Ryzen 3 3000 seriesX570, X470, B550, B450, A520B450, A520
Note- AMD Ryzen 3000 and 5000 series is compatible with more chipsets, but these are subject to selective BIOS updates, so we decided not to include them here.

Motherboards We Recommend

Each chipset for CPU generations will provide a different amount of features. For example, a Z690 motherboard for Intel’s 12th Gen will support CPU overclocking, but the rest of the chipsets, such as the B660 and H670, do not. We’ve covered this in more detail in our Z690 vs B660 buyers guide, which is definitely worth a read.

Intel Z690 and Z590 Motherboards

Aorus Master 700

Gigabyte Z690 AORUS Master

For the Intel 12th Generation CPU we recommend picking up this Gigabyte Z690 AORUS Master. Supporting high speed DDR5 memory, and perfect for overclocking which is only available on the Z690 variant.

This motherboard also boats slots for plenty of the latest generation of PCI-E SSDs, so is ideal to combine with other high-end components. It also has plenty of extra features like integrated WiFi, 10 Gigabit LAN and plenty of RGB.


Z590 E ASUS ROG Strix

ASUS ROG STRIX Z590-E Gaming WiFi

For Intel’s 11th Generation line-up, we recommend putting some money into a high-end motherboard to get the maximum feature set!

The ROG STRIX Z590-E supports the latest generation PCI-E 4.0 M.2 SSDs, WiFi 6E, and Multi-GPU SLI support. Although this board doesn’t have PCI-E 5.0 support for GPUs, you can still throw in a high-end RTX 3000 card.


Intel H670 and H570 Motherboards

ASUS TUF Gaming H670-Pro

ASUS TUF Gaming H670-Pro

The H670 range falls in just below Intel’s higher-end, Z690 offering. Although here you don’t have support for overclocking on your 12th Gen CPU. The H670 still offers plenty of PCI-E lanes, and support for PCI-E 5.0 (which will be ideal for upgrading to the RTX 4000 series).

The ASUS TUF Gaming H670 utilises a PCI-E 5.0 slot, Thunderbolt 4 headers, and plenty of fast USB connections.


ASRock H570 Phantom Gaming 4

ASRock H570 Phantom Gaming 4

For the Intel 11th Generation line-up, the Phantom Gaming 4 is another great board choice aimed more towards a mid-range build.

This motherboard has support for super-fast PCI-E 4.0 storage, the fastest USB 3.2 standard, Gen2x2, Gigabit Lan, and multiple RGB headers. All of these features make it an ideal choice for a more price conscious build.


Intel B660 and B560 Motherboards

B660 DS3H AX - Whole Motherboard

Gigabyte B660 DS3H AX

We’ve taken a look at Gigabyte’s B660 DS3H AX in more detail previously, and we were impressed. This DDR4 choice provides a budget experience on Intel’s 12th Gen line-up. Sporting integrated WiFi (a rarity on inexpensive boards), ultra fast PCI-E 4.0 support, high quality audio and Gigabyte’s RGB Fusion.


ASUS Prime B560-Plus

ASUS Prime B560-Plus

The ASUS Prime B560-Plus is an excellent board for those perhaps making an entry to PC building. This motherboard gives you access to a Thunderbolt 4 header, AURA Sync compatible RGB headers, and plenty of USB connections. A brilliant budget entry.


AMD Ryzen X570 and X470 Motherboards

MSI MEG x570 GODLIKE

MSI MEG X570 GODLIKE

MSI’s GODLIKE range are the ‘cream of the crop’ when it comes to features, RGB, and aesthetic.

This motherboard has pretty much everything you can imagine. 4 PCI-E 4.0 X16 slots, 3 M.2 PCI-E 4.0 slots with an included expansion card, support for up to 5000MHz+ memory and all of the Rear IO you could ask for. This is a ‘god-tier’ board ideal for AMD’s highest end Ryzen 9 and Ryzen 7 chips.


ASRock X470 Taichi

ASRock X470 Taichi

The Taichi branded boards not only supply great performance, but quite literally ‘rock’ an awesome design.

The X470 Taichi comes with Nichicon 12K black capacitors, perfect for overclocking. This board also comes with plenty of RGB and included headers, PCI-E 3.0 M.2 slots, and ASRock’s Purity Sound 4, bringing crisp audio performance.


AMD Ryzen B550 and B450 Motherboards

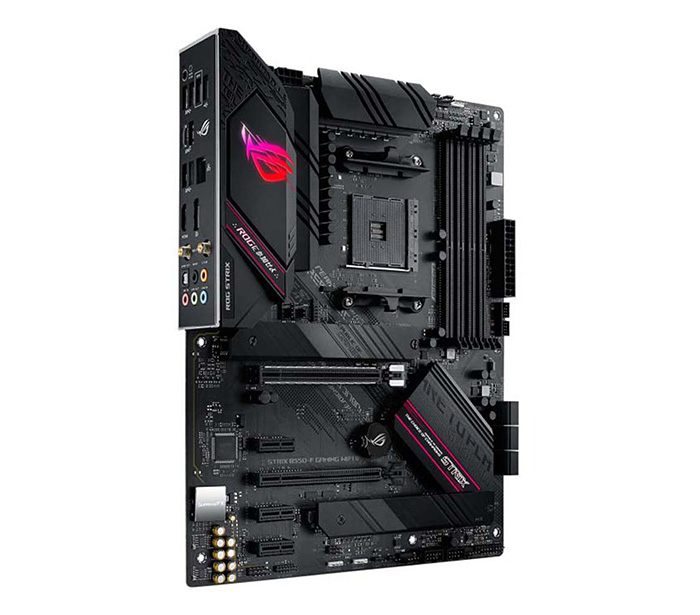

ASUS Rog Strix B550-F Gaming

ASUS ROG STRIX B550-F Gaming

ASUS ROG branded boards always deliver on features and design! The ROG STRIX B550-F Gaming is ideal for those wanting to utilise the Ryzen 5 or some Ryzen 7 CPUs.

This motherboard also supports up to 5100MHz DDR4 memory, 2-Way CrossFireX for multiple GPUs, 2.5 Gigabit LAN, and a SupremeFX audio chip bringing high-quality sound to your headset.

ASUS TUF Gaming B450 Plus II

ASUS TUF Gaming B450-Plus II

The ASUS TUF Gaming B450-Plus II is a perfect motherboard for overclocking those unlocked ‘X’ processors. For the Ryzen 5 and 7 CPUs, there are plenty of heatsinks on the board to give you good thermals.

This motherboard also provides a wide range of storage options, including support for Raid 0, 1 and 10 and on the on-board storage controller. With the AURA Sync compatible headers as well, you can have a bright light show in your room!

AMD Ryzen B450 and A520 Motherboards

Gigabyte B450M DS3H

Gigabyte B450M DS3H

The Gigabyte B450M DS3H is the cousin to the above B660 DS3H AX. This budget board has plenty of features at a very reasonable cost. Equipped with a very simple to use BIOS, fast expansion choices with PCI-E Gen 3, plenty of RGB lighting options, and a wide range of Rear IO.


MSI A520M-A Pro

MSI A520M-A Pro

The MSI A520M-A Pro is a simplistic motherboard that puts features at the forefront, over design.

This board comes with an EZ Debug LED for easy diagnosis and troubleshooting, dedicated HD audio processor, up to 4600MHz memory overclocking, and easy BIOS software.
